코마츠 PC60-7 굴삭기는 자동차 수리용 장비 708-7T-00470KT 조립 오일 봉지 키트를 흔듭니다
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 부품번호 | 708-7T-00470KT | 애플리케이션 | 건설 작업, 기계 정비소 |
|---|---|---|---|
| 상태 | 새로운 100% | 타입 | 스윙 모터 수리용 장비 |
| 색 | 검정색 | 호환형 설비 | Komatsu 굴착기 |
제품 설명

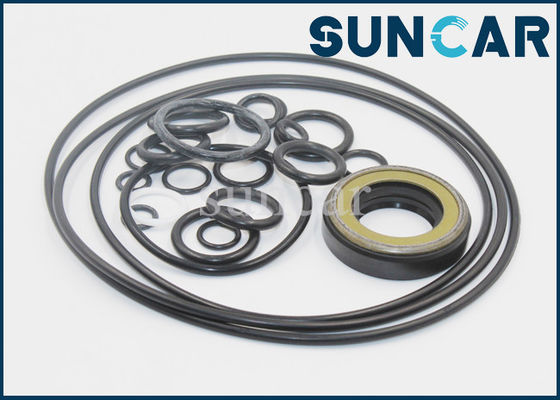

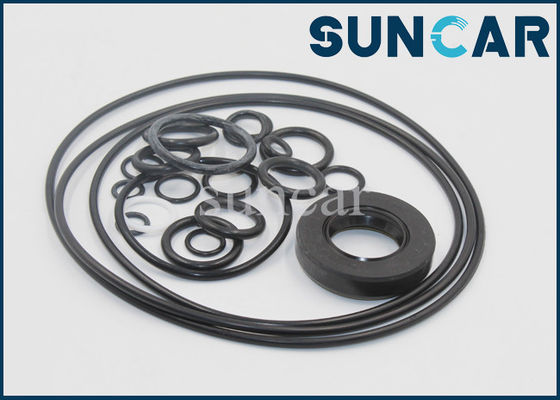

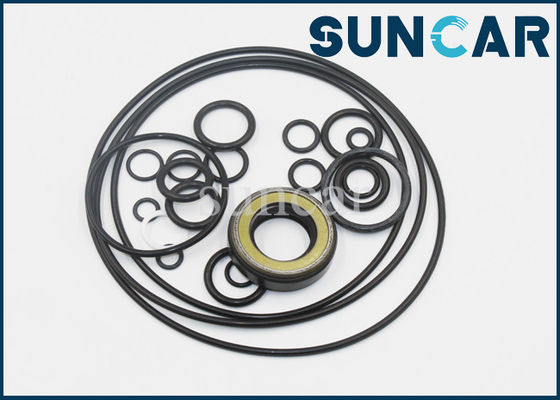

Komatsu PC60-7 Excavator Swing Motor Repair Kit 708-7T-00470KT Assembly Oil Seal Kit
| Product Name | Komatsu PC60-7 Excavator Swing Motor Repair Kit 708-7T-00470KT Assembly Oil Seal Kit |
| Part No. | Kom- 708-7T-00470KT |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Hardness | 70-90 Shore A |
| Color | BlackWhite or other (as your request) |
| Size | Standard Size |
| MOQ | We accept trial order |
| Packing | PP bag inside, carton box outside( According to your requirements) |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment | Western Union, L/C, T/T, , D/A, D/P etc. |
| Port | HUAGNPU,China (Mainland) |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Excavator Systerm |
| Condition | 100% Brand New |
PC60-7 Excavator Swing Motor Relation Parts:
| Pos. | Part No | Parts name | QTY | Serial Number |
| 708-7T-00470 | MOTOR ASSEMBLY | 1 | SN: 59571-UP | |
| 708-7T-00360 | MOTOR ASSEMBLY | 1 | SN: 52374-59570 | |
| 708-7T-00240 | MOTOR ASSEMBLY | 1 | SN: 45001-52373 | |
| 708-7T-01210 | • MOTOR SUB ASSEMBLY | 1 | SN: 59571-UP | |
| 708-7T-01040 | • MOTOR SUB ASSEMBLY | 1 | SN: 45001-59570 | |
| 1 | 708-7T-11240 | •• CASE,MOTOR | 1 | SN: 45001-UP |
| 2 | 708-7T-11670 | •• COVER,END | 1 | SN: 59571-UP |
| 708-7T-11640 | •• COVER,END | 1 | SN: 45001-59570 | |
| 2A | 706-73-72420 | •• VALVE | 2 | SN: 59571-UP |
| 2B | 706-73-72440 | •• SPRING | 2 | SN: 59571-UP |
| 2C | 706-73-72430 | •• PLUG | 2 | SN: 59571-UP |
| 2D | 07002-12434 | •• O-RING | 2 | SN: 59571-UP |
| 3 | 708-7T-51210 | •• O-RING | 1 | SN: 45001-UP |
| 4 | 720-68-19610 | •• PIN | 2 | SN: 45001-UP |
| 5 | 01010-81250 | •• BOLT | 4 | SN: 45001-UP |
| 6 | 708-7T-12420 | •• SHAFT | 1 | SN: 59571-UP |
| 708-7T-12220 | •• SHAFT | 1 | SN: 45001-59570 | |
| 7 | 708-7T-12240 | •• BEARING | 1 | SN: 45001-UP |
| 8 | 708-7T-12250 | •• BEARING | 1 | SN: 45001-UP |
| 9 | 708-7T-05020 | •• SPACER KIT | 1 | SN: 45001-UP |
| 10 | 708-7T-12230 | •• SEAL,OIL | 1 | SN: 45001-UP |
| 11 | 04065-04518 | •• RING,SNAP | 1 | SN: 45001-UP |
| 12 | 708-7T-13140 | •• BLOCK,CYLINDER | 1 | SN: 45001-UP |
| 13 | 708-7T-13290 | •• PLATE,VALVE | 1 | SN: 59571-UP |
| 708-7T-13261 | •• PLATE,VALVE | 1 | SN: 45001-59570 | |
| 14 | 720-68-19610 | •• PIN | 1 | SN: 45001-UP |
| 15 | 708-7T-13540 | •• PIN | 3 | SN: 45001-UP |
| 16 | 708-7T-13530 | •• WASHER | 2 | SN: 45001-UP |
| 17 | 708-7T-13570 | •• SPRING | 1 | SN: 45001-UP |
| 18 | 04065-03815 | •• RING | 1 | SN: 45001-UP |
| 19 | 708-7T-13510 | •• GUIDE,RETAINER | 1 | SN: 45001-UP |
| 20 | 708-7T-13342 | •• RETAINER,SHOE | 1 | SN: 45001-UP |
| 21 | 708-7T-13352 | •• PISTON SUB ASSEMBLY | 7 | SN: 59571-UP |
| 708-7T-13611 | •• PISTON SUB ASSEMBLY | 7 | SN: 45001-59570 | |
| 22 | 708-7T-53420 | •• PLATE,THRUST | 1 | SN: 59571-UP |
| 708-7T-13421 | •• PLATE,THRUST | 1 | SN: 45001-59570 | |
| 23 | 708-7T-13710 | •• SPACER | 1 | SN: 45001-UP |
| 24 | 708-7T-52512 | •• PLATE | 3 | SN: 45001-UP |
| 25 | 708-7T-15120 | •• DISC | 2 | SN: 45001-UP |
| 26 | 708-7T-15140 | •• PISTON,BRAKE | 1 | SN: 45001-UP |
| 27 | 07000-12130 | •• O-RING | 1 | SN: 45001-UP |
| 28 | 708-7T-55220 | •• O-RING | 1 | SN: 45001-UP |
| 29 | 708-7T-15150 | •• SPRING | 4 | SN: 45001-UP |
Advantages:
1.Excellent performance of sliding ,no crawling effect
2.Good dynamic and static sealing
3.High abrasion,long service life
4.Wide using temperature range,high chemical stability(It depends on the material of O-ring)
5.Simple and convenient installation O-Rings: NBR
If you unsure whether this is correct for your machine, please contact us. This product is available to ship worldwide
We have professional product design capability. We develop the most competitive products in the market to our customers for choices.
We will provide professional and efficient service, any questions about product service, please contact us directly, we will reply you within 24 hours.
