EC330B EC330C 유압펌프 봉지 키트 VOE14554798 VOE14554799
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 부품번호 | VOE14554798/ VOE14554799 | 애플리케이션 | 기계 정비소, 건설 작업, 산업 |
|---|---|---|---|
| 상태 | 새롭고 열리지 않습니다 | 품질 | 하이-퀄이티 |
| 응용성 | 볼보 구조 | 부품 형식 | 수경성 pump/ 주펌프 봉지 키트, 수력학 |
| 하이 라이트 | EC330C Hydraulic Pump Seal Kit,VOE14554798 Seal Kit,VOE14554799 Seal Kit |
||
제품 설명

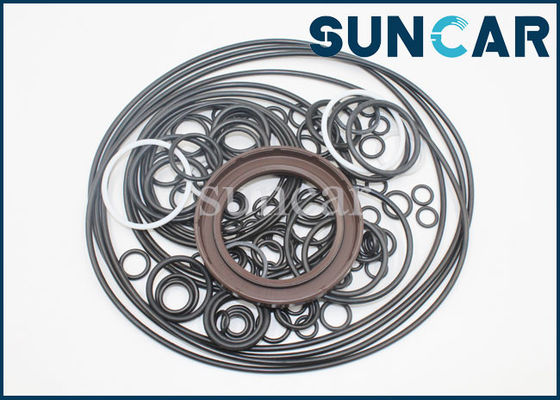

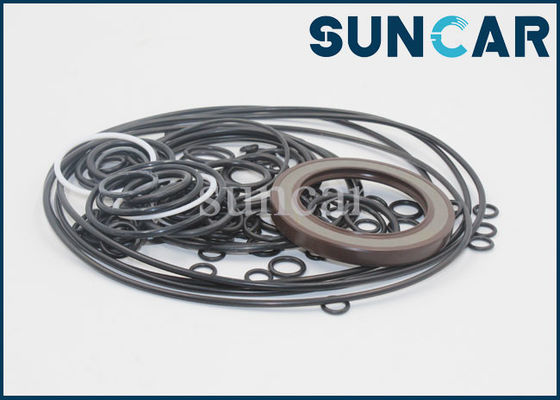

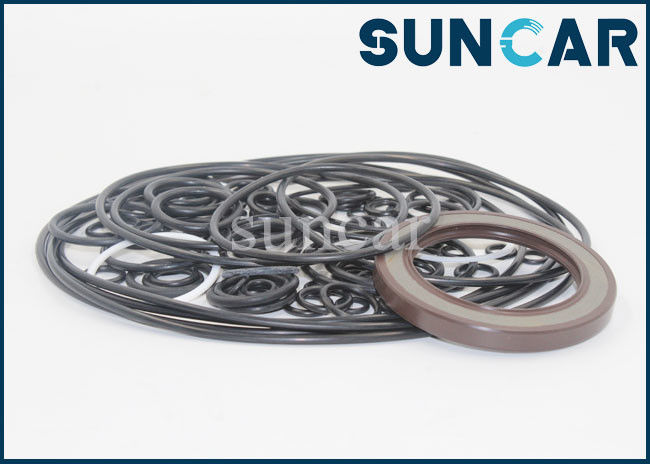

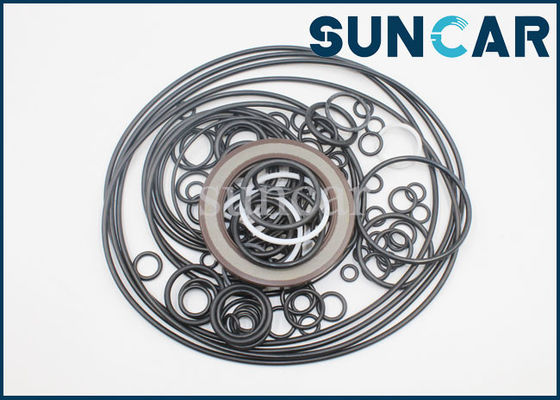

Hydraulic Pump Seivice Kit VOE14554798 Repair Seal Kits Fits For SUNCARSUNCARSUNCARSUNCARVOLVO Excavator EC330B EC330C
| Part Number | VOE14554798/ VOE14554799 |
| Model Number | EC330B, EC330C, EC360B, EC360C |
| Place of Origin | Guangdong, China |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| AppliC.A.Tion | Machinery repair shops, construction works, industry |
| Conditions | New, unopened |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Compatible Equipment Type | Excavator |
| Color | As shwon |
| CertifiC.A.Tion | ISO9001 |
| Part Type | Hydraulic pump/ main pump seal kit, hydraulics |
| Applicability | SUNCARSUNCARSUNCARSUNCARVOLVO construction |
| Quality | High-quality |
Welcom to contact us,we can provide the high quality and best price!
Related Parts:
| Pos. | Part No | Qty | Parts name |
| VOE14549798 | [1] | Pump | |
| 1 | SA7223-00140 | [2] | Piston |
| 2 | SA7223-00150 | [9] | Piston |
| 3 | SA7223-00160 | [9] | Pad |
| 4 | VOE14563795 | [1] | Cylinder |
| 5 | SA7223-00090 | [1] | Block |
| 6 | VOE14563797 | [1] | Plate |
| 7 | VOE14563796 | [1] | Cylinder |
| 8 | SA7223-00090 | [1] | Block |
| 9 | VOE14563798 | [1] | Plate |
| 10 | VOE14502011 | [2] | Plate |
| 11 | VOE14502011 | [1] | Plate |
| 12 | SA7223-00240 | [1] | Bushing |
| 13 | VOE14511979 | [1] | Gear |
| 14 | SA7241-00421 | [2] | Roller bearing |
| 15 | VOE14511981 | [2] | Bearing |
| 16 | VOE14550444 | [3] | Spacer |
| 17 | SA7242-10210 | [2] | Plate |
| 18 | VOE14510070 | [2] | Bushing |
| 19 | SA7223-00180 | [18] | Spring |
| 20 | SA7223-00260 | [2] | Support |
| 21 | SA7223-00210 | [2] | Plate |
| 22 | VOE14532653 | [1] | Valve |
| 23 | VOE14533606 | [4] | O-ring |
| 24 | VOE14533608 | [1] | O-ring |
| 25 | VOE14560637 | [3] | Plug |
| 26 | SA9016-20612 | [3] | Bolt |
| 27 | VOE14883837 | [1] | Plug |
| 28 | SA7223-00180 | [1] | Spring |
| 29 | VOE990738 | [1] | O-ring |
| 30 | VOE990546 | [1] | O-ring |
| 31 | VOE990547 | [1] | O-ring |
| 32 | VOE14560637 | [15] | Plug |
| 33 | [2] | Casing | |
| 34 | VOE14506634 | [1] | Pin |
| 35 | VOE14506634 | [1] | Pin |
| 36 | VOE14506634 | [1] | Pin |
| 37 | VOE14533604 | [8] | O-ring |
| 38 | VOE14533606 | [1] | O-ring |
| 39 | SA7223-00410 | [1] | Piston |
| 40 | SA7223-00420 | [1] | Stop |
| 41 | SA7223-00430 | [1] | Stop |
| 42 | VOE14692341 | [1] | Ring |
| 43 | SA7223-00650 | [1] | Ring |
| 44 | SA7223-00690 | [1] | O-ring |
| 45 | SA7223-00700 | [1] | O-ring |
| 46 | VOE14560637 | [6] | Plug |
| 47 | SA7223-00390 | [4] | Hex. socket screw |
| 48 | VOE14549801 | [2] | Non-return valve |
| 49 | VOE14550471 | [1] | Seat |
| 50 | VOE14550472 | [1] | Stopper |
| 51 | VOE14880998 | [1] | Ball |
| 52 | VOE14549802 | [2] | Non-return valve |
| 53 | VOE14550471 | [1] | Seat |
| 54 | VOE14550473 | [1] | Stopper |
| 55 | VOE14880998 | [1] | Ball |
| 56 | VOE967630 | [8] | Hex. socket screw |
| 57 | VOE14533617 | [3] | O-ring |
| 58 | VOE14533034 | [2] | O-ring |
| 59 | VOE14533035 | [2] | O-ring |
| 60 | VOE14533606 | [2] | O-ring |
| 61 | VOE14533612 | [4] | O-ring |
| 62 | VOE979022 | [4] | Hexagon nut |
| 63 | VOE14511994 | [1] | Cover |
| 64 | VOE983919 | [2] | Hex. socket screw |
| 65 | VOE14512382 | [12] | Plug |
| 66 | VOE14883837 | [2] | Plug |
| 67 | VOE14533618 | [1] | O-ring |
| 68 | SA7223-00680 | [2] | Set screw |
| 69 | VOE14512927 | [1] | Power take-off |
| 70 | SA9415-11051 | [1] | Plug |
| 71 | VOE983919 | [4] | Hex. socket screw |
| 72 | VOE14533612 | [1] | O-ring |
| 73 | VOE14880555 | [2] | Eye bolt |
| 74 | SA7223-00670 | [0002] | Set screw |
| 75 | VOE14519957 | [1] | Cover |
| 76 | VOE14511977 | [1] | Shaft |
| 77 | VOE14520039 | [1] | Shaft |
| 78 | VOE14551796 | [1] | Cover |
| VOE14551796 | [1] | Cover | |
| 79 | VOE14600699 | [1] | Seal |
| 80 | VOE14518276 | [1] | Block |
| 81 | VOE914470 | [2] | Snap ring |
| 82 | VOE14551525 | [2] | Pin |
| 83 | SA7223-00660 | [4] | Spring pin |
| 84 | SA9415-11051 | [4] | Plug |
| 100 | VOE14554798 | [1] | Seal |
This pump seal kit is well received by customers in the market because of its high durability, tensile strength and good resistance to harsh environments. Welcome OEM/ODM order. Please click "ask a question", or call us if you have a parts need that you do not see listed here.
