K9000947 Swing Motor Seal Kit For Komatsu SOLAR300LC Doosan DH300-7
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | 코마츠 SOLAR300LC-V, 두산 DH300-7 | 운송 모드 | 빠른 우편으로 해로로, 공중 (페덱스, UPS, DHL, TNT, 기타 등등.)에 의해 |
|---|---|---|---|
| 특징 | 고압 저항, 내구성, 부식 저항성 | 종류 그룹 | 그네 모터 물개 장비 |
| 애플리케이션 | komatsu 굴착기 예비 품목 | 색 | 고객 요구에 따라 |
| 사이즈 | 표준 크기 | 상태 | 새로운 100% |
| 하이 라이트 | K9000947 Swing Motor Seal Kit,K9000947 Motor Seal Kit,DH300-7 K9000947 |
||
제품 설명

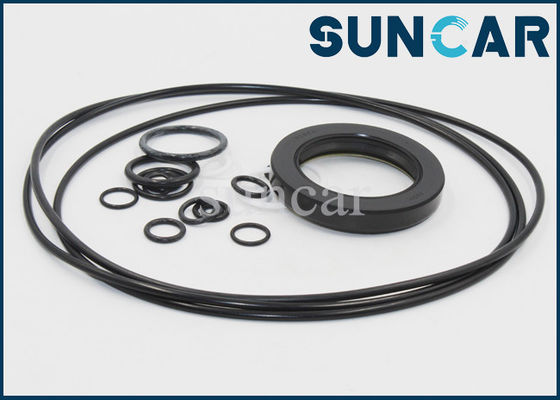

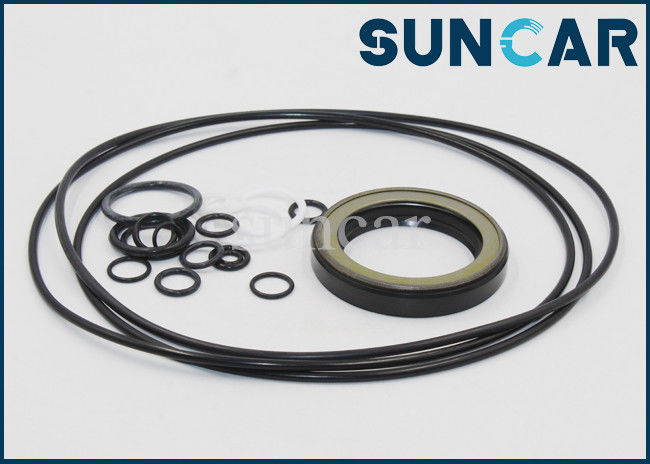

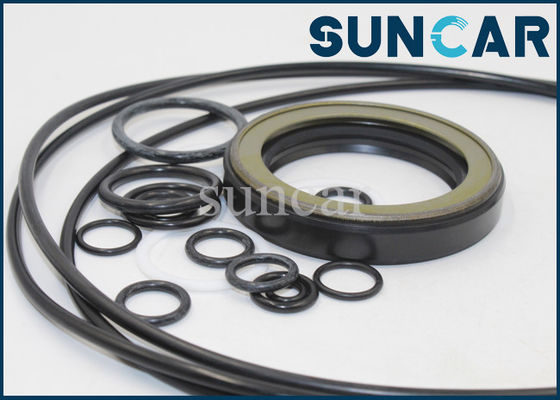

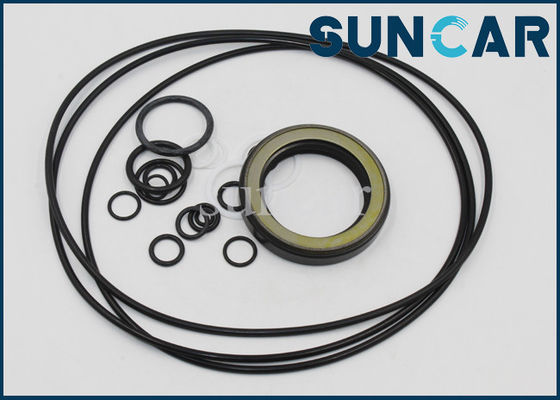

K9000947 Hydraulic Swing Motor Seal Kit Komatsu SOLAR300LC-V Repair Kit Doosan DH300-7
| K9000947 Hydraulic Swing Motor Seal Kit Komatsu SOLAR300LC-V Repair Kit Doosan DH300-7 | |||
| Model No. | Komatsu SOLAR300LC-V , Doosan DH300-7 | Packing | PP bag inside, carton box outside |
| Material | NBR+KFM+PTER+PU | MOQ | 1set |
| Size | Standard size or custom size | Brand | suncar |
| Hardness | 70-90 shore A | Temperature | -35~220℃ |
| Pressure | 0~0.05Mpa | Feature | Oil-resistant, heat resistant,Durable |
| Color | Black Brown and more | Loading Port | Huangpu port in China |
| AppliC.A.Tion | Excavator swing motor seal kit | Payment terms | T/T, Western union, paypal, |
| trade assurance or as require | |||
| CertifiC.A.Tes | ISO9001 | Delivery time | 3-5 days after payment received |
| Warranty | Unavailable | Shipment | By sea, by air, by express or as required |
Related Parts:
| Pos. | Part No | Parts name | QTY |
| - | 401-00457B | SWING MOTOR-OPT. | 1 |
| 1 | K9000949 | BODY | 1 |
| 2 | K9000403 | SEAL;OIL | 1 |
| 3 | K9000924 | BEARING;ROLLER | 1 |
| 4 | S6510850 | RING;SNAP | 1 |
| 5 | K9000925 | SHAFT | 1 |
| 6 | K9000926 | PIN;PARALLEL | 1 |
| 7 | K9000927 | RING;STOP | 1 |
| 8 | K9000928 | PLATE;SHOE | 1 |
| 9 | K9000929 | KIT;ROTARY | 1 |
| 9A | K9000930 | . CYLINDER BLOCK KIT | 1 |
| 9Aa | K9000931 | .. BLOCK;CYLINDER | 1 |
| 9Ab | K9000932 | .. PLATE;VALVE | 1 |
| 9B | 1.131-00070 | . SPRING | 9 |
| 9C | K9000933 | . KIT;RETAINER | 1 |
| 9Ca | K9000934 | .. GUIDE;BALL | 1 |
| 9Cb | K9000935 | .. PLATE;SET | 1 |
| 9D | K9000936 | . PISTON KIT | 1 |
| 14 | K9000937 | PLATE;FRICTION | 3 |
| 15 | K9000938 | PLATE | 3 |
| 16 | K9000939 | PISTON;BRAKE | 1 |
| 17 | 2180-1216D155 | O-RING | 2 |
| 18 | K9000940 | SPRING | 18 |
| 19 | K9000941 | COVER | 1 |
| 20 | 2.109-00176 | BEARING;NEEDLE | 1 |
| 21 | S5711031 | PIN;PARALLEL | 2 |
| 23 | S2227661 | BOLT;SOCKET M20X2.5 | 2 |
| 24 | 1.426-00010 | POPPET | 2 |
| 25 | 1.131-00072 | SPRING | 2 |
| 26 | 1.181-00103 | PLUG | 2 |
| 27 | S8000291 | O-RING | 2 |
| 28 | K9000942 | REACTIONLESS VALVE ASSEMBLY | 2 |
| 29 | K9000943 | PLUG | 2 |
| 30 | S8000121 | O-RING | 2 |
| 31 | S8000181 | O-RING | 2 |
| 32 | K9000944 | RING;BACK UP | 2 |
| 33 | K9000945 | RELIEF VALVE ASSEMBLY | 2 |
| 33A | S8000311 | . O-RING | 1 |
| 33B | S8060310 | . RING;BACK-UP | 1 |
| 33C | S8000261 | . O-RING | 1 |
| 33D | S8000241 | . O-RING | 1 |
| 33E | S8060240 | . RING;BACK-UP | 1 |
| 34 | K9000946 | TIME DELAY VALVE ASSEMBLY | 1 |
| 34A | S8000071 | . O-RNG | 1 |
| 34B | S8000151 | . O-RING | 2 |
| 35 | S2206161 | BOLT;SOCKET M6X75 | 3 |
| 36 | 420-00112 | PLUG | 3 |
| 37 | S8000111 | O-RING | 3 |
| 38 | 2180-1216D154 | O-RING | 1 |
| 39 | K9000948 | BUSHING | 1 |
| * | K9000947 | KIT;SEAL | 1 |
FAQ:
Questions you maybe inquiry
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , WEST UNION or other payment terms we reach agreement.
Q2: How can you guarantee the quality?
A: 1 month warranty against B/L date.
If You meet with quality problem, we promise to responsible for it.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q4: Can we buy 1pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
Q5: What is the lead time?
A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
