31M8-51530 터닝센터는 엑스카베이타 R55-7 R55-7A를 위한 봉지 키트를 접합합니다
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 상품 이름 | 접합 밀봉 장비를 돌리기 | 모델 번호 | R55-7, R55-7A, R80-7, R80-7A, R80CR-9, R80CR-9A |
|---|---|---|---|
| 부품번호 | 31M8-51530 | 애플리케이션 | 땅을 골라 건설 기계를 채굴하는 굴삭기, 중장비, 굴착기, 거래된 차 |
| 그룹 | 스위블 관 이음쇠 봉지 키트 / 터닝 조인트 봉지 키트 | 보증 | 이용할 수 없습니다 |
| 하이 라이트 | 31M8-51530 접합 밀봉은 장비를 갖춥니다,31M8-51530 봉지 키트,R55-7 31M8-51530 |
||
제품 설명

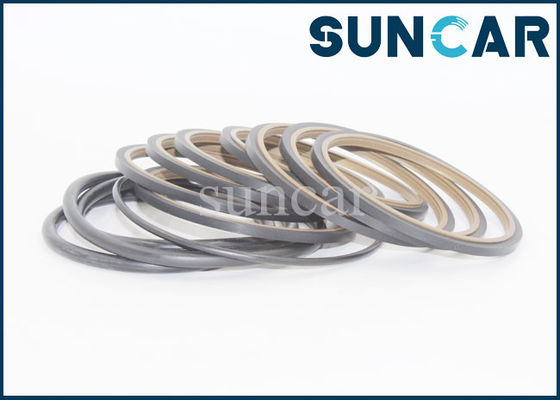

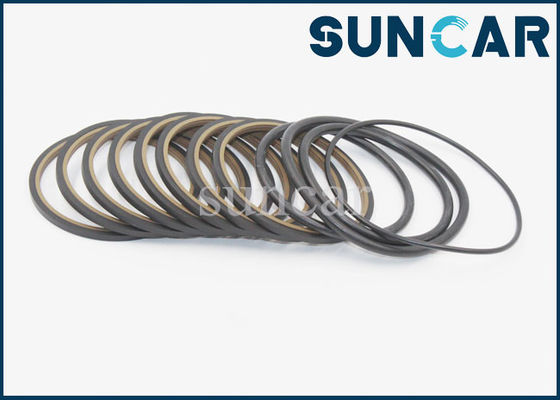

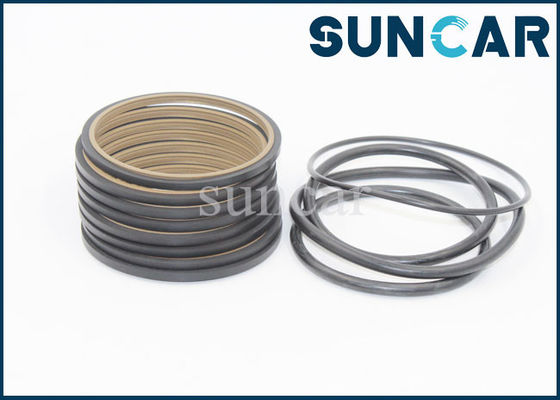

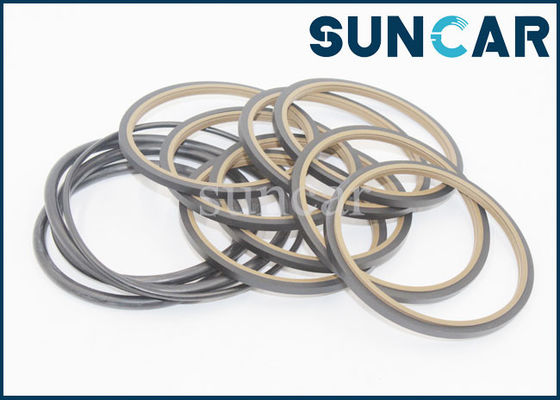

Hyundai HCE Seal Kit 31M8-51530 Turning Joint Sealing Kit Fits For Excavater R55-7 R55-7A
| Product Name | Turning joint seal kit |
| Model Number | R55-7, R55-7A, R80-7, R80-7A, R80CR-9, R80CR-9A |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 31M8-51530 |
| Sample/Stock | Available |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size/custom size |
| Applicable Industries | Building material shops, machinery repair shops, construction works, other |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| AppliC.A.Tion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck |
| Warranty | Unavailable |
| Group | Swivel joint seal kit / turning joint seal kit |
| Color | As shwon |
| MOQ | Trial order acceptable |
Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31M8-51000 | [1] | TURNING JOINT ASSY |
| 1 | 31M8-51500 | [1] | SHAFT |
| 2 | 31M8-51510 | [1] | ROTOR |
| 3 | 31M8-51520 | [1] | COVER |
| K4. | S631-080004 | [1] | O-RING |
| 5 | 31M6-51530 | [1] | RING |
| K6. | 31M6-51540 | [8] | SLIPPER SEAL |
| K7. | S632-105004 | [1] | O-RING |
| 8 | S601-075004 | [1] | RING-RETAINING |
| K9. | S631-095001 | [1] | O-RING |
| 10 | P220-430201 | [1] | PLUG |
| 11 | P220-430203 | [6] | PLUG |
| 12 | S017-080352 | [4] | BOLT-HEX |
| 13 | S411-080002 | [4] | WASHER-SPRING |
| K. | 31M8-51530 | [1] | SEAL KIT |
Hydraulic seal installation requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.
Competitive Advantage:
1. Excellent product quality control;
2. Reasonable market price;
3. Small orders, delivered on time;
4. Customer-focused organization;
5. Smooth and fast communiC.A.Tion;
6. Practice teamwork;
7. Committed to doing consumer trust products.
We have the full range of mould size and stable and high quality production line to ensure delivery, welcome OEM/ODM order. Please click "ask a question", or call us if you have a parts need that you do not see listed here.
