OEM R130LC Excavator Hyundai Service Kit 91E6-2710
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 부품번호 | 91E6-2710 | 상품 이름 | 접합 밀봉 장비를 돌리기 |
|---|---|---|---|
| 샘플 / 주식 | 이용 가능합니다 | 애플리케이션 | 땅을 골라 건설 기계를 채굴하는 굴삭기, 중장비, 굴착기, 거래된 차 |
| 그룹 | 스위블 관 이음쇠 봉지 키트 / 터닝 조인트 봉지 키트 | 사이즈 | 표준 크기 / 사용자 지정 크기 |
| 하이 라이트 | R130LC Excavator Hyundai Service Kit,91E6-2710 Service Kit,OEM 91E6-2710 |
||
제품 설명
Turing Joint Seal Kit 91E6-2710 Hyundai OEM Service Kit For Excavator Model R130LC
| Product Name | Turning joint seal kit |
| Model Number | 91E6-2710 R130LC |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 91E6-2710 |
| Sample/Stock | Available |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size/custom size |
| Applicable Industries | Building material shops, machinery repair shops, construction works, other |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| AppliC.A.Tion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck |
| Warranty | Unavailable |
| Group | Swivel joint seal kit / turning joint seal kit |
| Color | As shwon |
| MOQ | Trial order acceptable |
Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31E6-0001 | [1] | TURNING JOINT |
| 1 | 31E6-0002 | [1] | HUB |
| 2 | 31E6-0003 | [1] | SHAFT |
| 3 | 31E3-0034 | [1] | COVER |
| 4 | 31E3-0035 | [1] | SPACER |
| 5 | 31E3-0036 | [1] | SHIM |
| 6 | 31E3-0037 | [1] | SHIM |
| K7. | 31E6-40500 | [6] | SEAL-SLIPPER |
| K8. | CO0073A | [1] | O-RING |
| K9. | CO0067B | [1] | O-RING |
| K10. | CO0219B | [1] | O-RING |
| 11 | S601-090004 | [1] | RING-RETAINING |
| 12 | 31E6-0092 | [1] | PLUG-PT |
| 13 | 31E6-0095 | [1] | PLUG-PT |
| 14 | S017-120302 | [4] | BOLT-HEX |
| 15 | S411-120002 | [4] | WASHER-SPRING |
| K. | 91E6-2710 | [1] | SEAL KIT(7-10) |
Our main product lines applied to all Excavator brand and models, partially listed as below:
Komatsu: PC30 PC40 PC50 PC55 PC60 PC70 PC100 PC120 PC130 PC200 PC220 PC240 PC300 PC360 PC400 PC460.
Hitachi: EX60 EX100 EX120 EX200 EX220 EX230 EX300 EX330 EX400 EX450 ZAX70 ZAX130 ZAX120 ZAX210 ZAX200 ZAX240 ZAX330 ZAX450.
Doosan: DH55 DH130 DH220 DH200 DH280 DH290 DH320 DH450.
Hundai: R200 R210 R215 R225 R280 R290 R320 R450.
Kato: HD250 HD400 HD450 HD550 HD512 HD7000 HD800 HD820 HD900 HD1023 HD1250 HD1880 HD1430.
Kobelco: SK07 SK09 SK60 SK100 SK120 SK200 SK230 SK250 SK260 SK300 SK400.
SUNCARSUNCARSUNCARSUNCARVOLVO: EC55 EC130 EC210 EC240 EC290 EC360 EC450.
Hydraulic Seal Installation Requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.

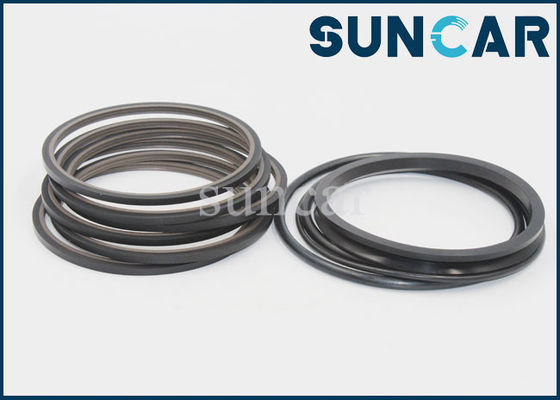

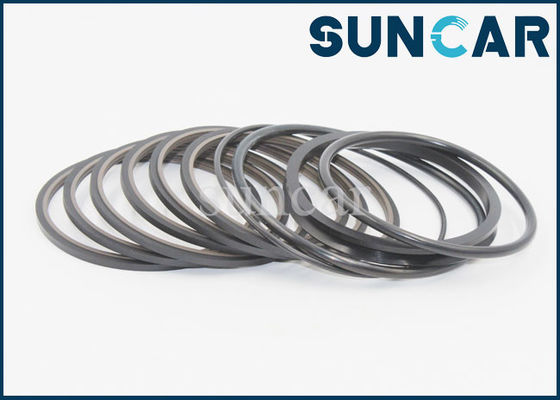

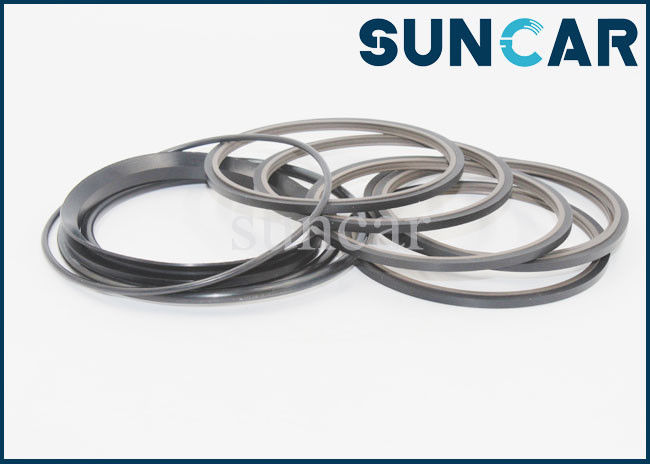

Product Image:
