XKAH-00824 유압펌프 봉지 키트는 R55-7 R55W-7 현대 굴삭기에 적합합니다
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x상품 이름 | XKAH-00824 하이드로릭 메인 펌프 봉지 키트 | 부품번호 | XKAH-00824 |
---|---|---|---|
샘플 / 주식 | 이용 가능합니다 | 제품 작풍 | 수력 주펌프 봉지 키트 / 주펌프 봉지 키트 |
애플리케이션 | 땅을 골라 건설 기계를 채굴하는 굴삭기, 중장비, 굴착기, 거래된 차 | 보증 | 이용할 수 없습니다 |
하이 라이트 | XKAH-00824 펌프 봉지 키트,R55-7 유압펌프 봉지 키트,XKAH-00824 봉지 키트 |

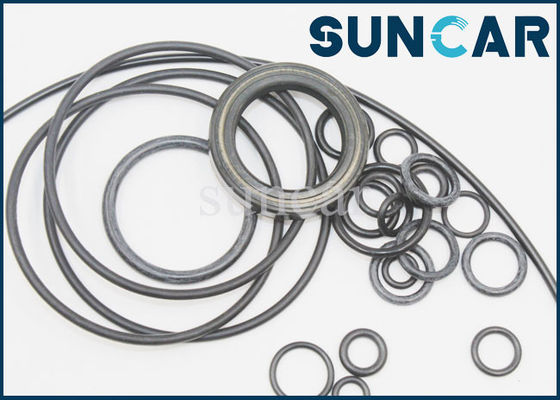

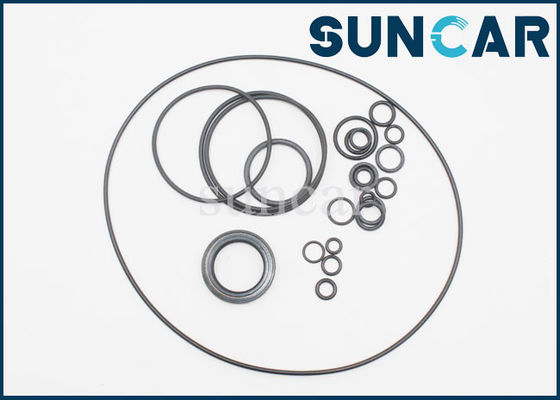

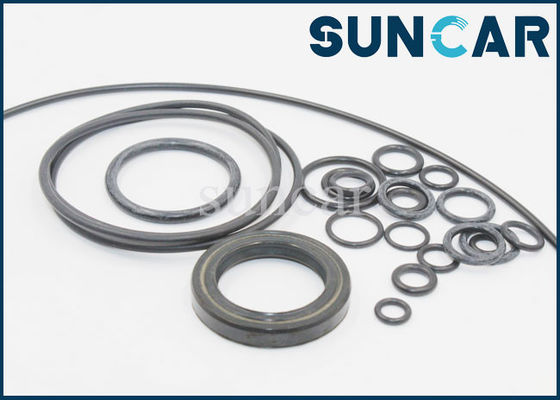

Pump Repair Kit XKAH-00824 Hydraulic Main Pump Seal Kit Fits R55-7 R55W-7 Hyundai Excavator
Product Name | XKAH-00824 Hydraulic Main Pump Seal Kit |
Model Number | R55-7, R55-7A, R55W-7, R55W-7A |
Place of Origin | China(Mainland) |
Brand name | SUNCAR |
Packing | PP bag inside, carton box outside |
Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
Part Number | XKAH-00824 |
Sample/Stock | Available |
Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
Size | Standard size |
Applicable Industries | Machinery repair shops, construction works, other |
CertifiC.A.Tion | ISO9001 |
Condition | 100% New |
Product style | Hydraulic main pump seal kit / main pump seal kit |
Warranty | Unavailable |
AppliC.A.Tion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck |
MOQ | Trial order acceptable |
Welcome OEM/ODM order. Please click "ask a question", or call us if you have a parts need that you do not see listed here.
Parts On Group Main Pump(1/3, T5VP2D25):
Pos. | Part No | Qty | Parts name |
*. | 31M8-10020 | [1] | MAIN PUMP |
*. | 31M8-10010 | [1] | MAIN PUMP |
N*-1. | XKAH-00783 | [1] | MAIN PUMP UNIT |
1 | XKAH-00653 | [1] | SHAFT-DRIVE |
2 | XKAH-00652 | [1] | COVER-SEAL |
3 | XKAH-00651 | [1] | BEARING-BALL |
4 | XKAH-00650 | [1] | RING-SNAP |
5 | XKAH-00649 | [1] | RING-SNAP |
K6. | XKAH-00648 | [1] | SEAL-OIL |
K7. | XKAH-00647 | [1] | O-RING |
8 | XKAH-00646 | [1] | RING-SNAP |
9 | XKAH-00645 | [1] | PLATE-SWASH |
10 | XKAH-00644 | [1] | PLATE |
11 | XKAH-00643 | [1] | SPACER-BEARING |
12 | XKAH-00642 | [2] | BEARING-ROLLER |
13 | XKAH-00641 | [4] | BOLT-SOCKET |
K14. | XKAH-00640 | [1] | O-RING |
15 | XKAH-00639 | [1] | PIVOT |
16 | XKAH-00655 | [1] | BLOCK-CYLINDER |
16 | XKAH-00918 | [1] | BLOCK-CYLINDER |
17 | XKAH-00656 | [1] | BUSH-SPHERICAL |
18 | XKAH-00657 | [1] | PLATE-PUSH |
18 | XKAH-00919 | [1] | PLATE-PUSH |
19 | XKAH-00658 | [1] | PLATE-SHOE |
20 | XKAH-00659 | [1] | SPRING |
21 | XKAH-00660 | [3] | PIN-PARALLEL |
22 | XKAH-00661 | [2] | SEAT-SPRING |
23 | XKAH-00662 | [1] | RING-SNAP |
24 | XKAH-00864 | [1] | PISTON SUB ASSY |
24 | XKAH-00928 | [1] | PISTON SUB ASSY |
26 | XKAH-00673 | [1] | CASING |
27 | XKAH-00675 | [1] | SEAT-SPRING(1) |
28 | XKAH-00676 | [1] | SEAT-SPRING(2) |
29 | XKAH-00677 | [1] | COVER-SPRING |
30 | XKAH-00678 | [1] | SCREW-ADJUSTING |
31 | XKAH-00679 | [1] | SPRING |
32 | XKAH-00680 | [1] | SPRING |
K33. | XKAH-00681 | [1] | O-RING |
34 | XKAH-00682 | [2] | BOLT-SOCKET |
35 | XKAH-00683 | [1] | NUT-HEX |
36 | XKAH-00684 | [1] | SHIM(0.3T) |
37 | XKAH-00685 | [1] | SHIM(0.5T) |
38 | XKAH-00686 | [1] | SHIM(1.0T) |
39 | XKAH-00687 | [1] | SHIM(2.0T) |
73 | XKAH-00716 | [1] | AIR BREATHER |
74 | XKAH-00717 | [1] | NAME PLATE |
N74. | XKAH-00924 | [1] | NAME PLATE |
75 | XKAH-00116 | [2] | SCREW-RIVET |
K. | XKAH-00824 | [1] | SEAL KIT |
*-2. | @ | [1] | GEAR PUMP ASSY |
Hydraulic seal installation requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.
