텐션 실린더 집회 9074450 밀봉 키트 트렉 조절기 장비는 히다찌 EX200에 적합합니다
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 부품번호 | 9074450 | 사이즈 | 표준 크기 |
|---|---|---|---|
| 상품 이름 | 궤도 조절기 물개 장비 | 적용 가능한 산업 | 건설 작업, 기계 정비소, 다른 소매점 |
| 특징 | 유가 & 고압 & 고온 레지스턴트 | 보증 | 이용할 수 없습니다 |
제품 설명
Tension Cylinder Assembly 9074450 Sealing Kit Track Adjuster Kits Fits Hitachi EX200
| Product Name | Track Adjuster Seal Kit |
| Model Number | Hitachi EX200 EX200K RX2000 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 9074450 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Construction works, machinery repair shops, retail, other |
| CertifiC.A.Tion | ISO9001 |
| Condition | Brand new |
| C.A.Tegory | Seal kits, seal, repair parts |
| Warranty | Unavailable |
| OEM and ODM | Welcome |
| Feature | Oil & high pressure & high temperature resistant |
| Preservation Notice | Closed, dry and avoid the sun |

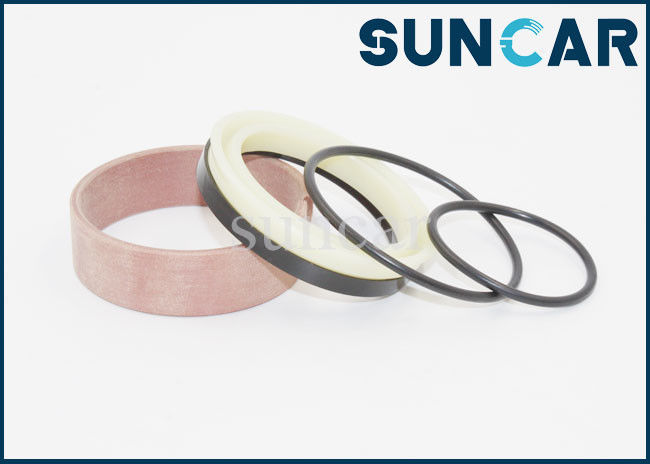

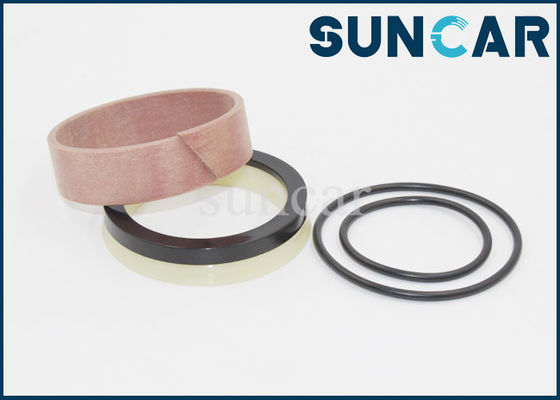

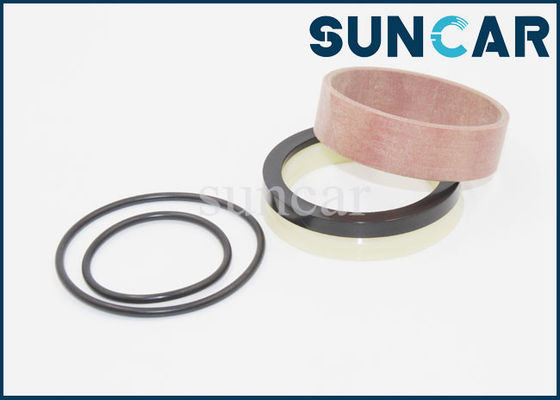

Product Image:
Related Parts:
| Pos. | Part No | Qty | Parts name |
| 9063666 | [2] | ADJUSTER ASSEMBLY | |
| 0 | 9074450 | [1] | CYL. ASSEMBLY |
| 00A. | 3033361 | [1] | CYL. |
| 00B. | 3033432 | [1] | ROD |
| 00C. | 4069900 | [1] | O-RING |
| 3 | 4179002 | [1] | SPACER |
| 4 | 3033433 | [1] | WASHER |
| 5 | 3033357 | [1] | SPRING |
| 6 | 4186444 | [1] | NUT |
| 7 | 4186691 | [1] | BOLT |
| 8 | 4177838 | [1] | RING;WEAR |
| 9 | 4177837 | [1] | PACKING;U-RING |
| 10 | 960323 | [1] | RING;RETAINING |
| 11 | 3033431 | [1] | ROD;PISTON |
| 12 | 3033434 | [1] | FLANGE |
| 13 | A811065 | [1] | O-RING |
| 14 | M341022 | [4] | BOLT;SOCKET |
| 15 | 9061173 | [1] | VALVE |
| 16 | 1005809 | [1] | YOKE |
| 17 | J901635 | [4] | BOLT |
Provide Other Parts:
| SUNCARSUNCARSUNCARSUNCARVOLVO Seal Kit | VOE11990026 |
| KOMATSU Seal Kit | 707-99-64400 |
| HITACHI Seal Kit | 4306765 |
| C.A.T Seal Kit | 126-1880 |
| HYUNDAI Seal Kit | 31Y1-18210 |
| DOOSAN Seal Kit | 2440-9280CKT |
| KOBELCO Seal Kit | LC01V00044R300 |
| JCB Seal Kit | 550/43378 |
| KATO Seal Kit | 309-66090020 |
| CASE Seal Kit | 191747A1 |
| Transmission Seal Kit | 714-07-05010 |
| Swing Motor Seal Kit | VOE14512788 |
| O-Ring Kit Box | 270-1528 |
| Pilot Valve Seal Kit | 709-99-13102KT |
| Center Joint Seal Kit | 703-09-33210KT |
| Hydraulic Pump Seal Kit | XJBN-01106 |
| Gear Pump Seal Kit | VOE14513778 |
| Control Valve Seal Kit | 700-82-38000KT |
| PPC Seals | SA8230-20110 |
| O-Ring | S631-112001 |
| D-Ring | 4092712 |
| Cylinder Steel Ring | 707-44-17910 |
Thanks for viewing our listings. Please click "ask a question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need, and make every effort to save you money.
