ZX200LC 굴삭기를 위한 9168003 왕복거리 모터 봉지 키트 오일 실 수리용 장비

원래 장소	중국(본토)
브랜드 이름	SUNCAR
모델 번호	히다찌 9168003
최소 주문 수량	받아들일 수 있는 시험 주문
가격	Negotiation
포장 세부 사항	안쪽으로 PP 부대, 밖에 판지 상자
배달 시간	3-5 일 지불이 받은 후에 (제외되는 공휴일)
지불 조건	웨스턴 유니온, L/C (신용장), 전신환, 머니그램, 인수 인도, D/P (지급도 조건), 페이팔
공급 능력	달 당 3500개 세트

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

제품 상세 정보

상품 이름	히다찌 9168003 왕복거리 모터 봉지 키트	운송 모드	빠른 우편으로 해로로, 공중 (페덱스, UPS, DHL, TNT, 기타 등등.)에 의해
부품번호	9168003	주문 제작됩니다	OEM & ODM는 환영됩니다
특징	고효율, 장수	범주	봉지 키트
하이 라이트	9168003 자동차 밀봉 Kit , 9168003 밀봉 Kit , 9168003 밀봉 수리용 장비

메시지를 남겨주세요

제품 설명

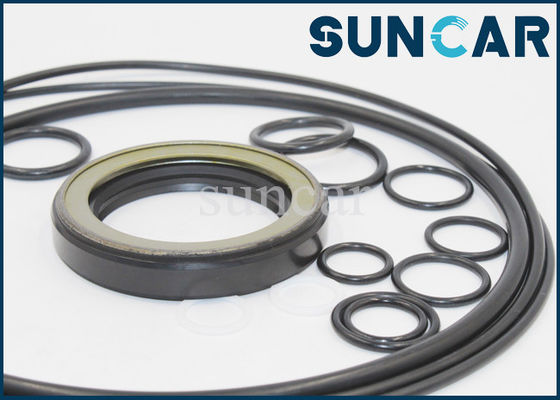

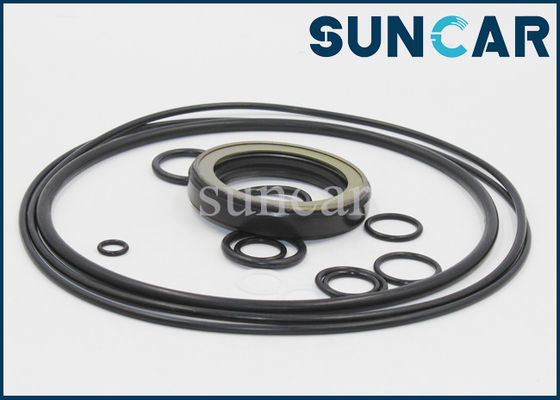

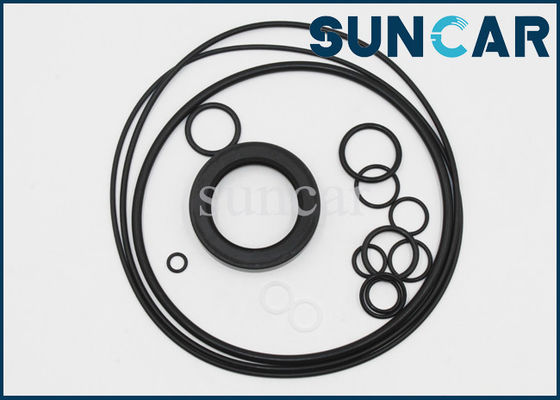

Hitachi 9168003 Travel Motor Seal Kit Excavator ZX200LC Inner Oil Motor Repair Kit

Product Name	Hitachi 9168003 Travel Motor Seal Kit Excavator ZX200LC Inner Oil Motor Repair Kit
OEM Number	9168003
Material	PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ etc.
Hardness	70-90 Shore A
Brand	SUNCAR/OEM
MOQ	Negotiation
Packing Detail	Inner-Plastic Bag,Outer -Standard Carton Box.(Or at your request)
Weight	0.35kg
Delivery Time	5-7 days after payment received(public holiday excluded)
Availability	In Stock
Shipping Policy	By International Express(Fedex,TNT,UPS,DHL)Or Ship
AppliC.A.Tion	Hitachi Excavator Model
Condition	100% Brand New
After-sales Service	Online support
Related parts	Boom Cylinder Seal Kit, Arm Cylinder Seal Kit, Bucket Cylinder Seal kit, Hydraulic Breaker Seal Kit, Pump Seal Kit
Supply Ability	3500 Piece/Pieces per Month

Related Parts:

Pos.	Part No	Qty	Parts name
0	9170996	[2]	TRAVEL DEVICE
0	9233687	[2]	TRAVEL DEVICE
0	9195447	[2]	TRAVEL DEVICE
0	9233688	[2]	TRAVEL DEVICE
1	9168003	[1]	MOTOR;OIL
1	9234034	[1]	MOTOR;OIL
1	9195451	[1]	MOTOR;OIL
1	9237802	[1]	MOTOR;OIL
2	4114753	[1]	SEAL;GROUP
2	4634693	[1]	SEAL;GROUP
3	4246793	[2]	BRG.;ROL.
4	1025833	[1]	DRUM
5	1018740	[1]	SPROCKET
6	J932055	[16]	BOLT
7	A590920	[16]	WASHER;SPRING
8	3086531	[1]	NUT
10	4436242	[1]	PIN;KNOCK
12	1025875	[1]	CARRIER
14	4438593	[6]	BRG.;NEEDLE
15	4284521	[6]	PLATE;THRUST
16	4315838	[3]	PIN
17	4116309	[3]	PIN;SPRING
18	3082156	[1]	GEAR;SUN
19	3084353	[3]	GEAR;PLANETARY
20	1025787	[1]	GEAR;RING
21	J931640	[24]	BOLT
23	2042432	[1]	CARRIER
24	4401293	[2]	SPACER
25	3082155	[3]	GEAR;PLANETARY
26	4438592	[3]	BRG.;NEEDLE
27	4192982	[6]	PLATE;THRUST
28	4402086	[3]	PIN
29	4192020	[3]	PIN;SPRING
30	3082149	[1]	GEAR;SUN
32	1025826	[1]	CARRIER
33	3082148	[3]	GEAR;PLANETARY
34	4387383	[3]	BRG.;NEEDLE
35	4192910	[6]	PLATE;THRUST
36	4210853	[3]	PIN
37	4173093	[3]	PIN;SPRING
38	2042351	[1]	SHAFT;PROP.
38	2049585	[1]	SHAFT;PROP.
40	2034833	[1]	COVER
41	4285323	[1]	PIN;STOPPER
41	4478346	[1]	PIN;STOPPER
42	J011230	[12]	BOLT;SEMS
42	4609016	[12]	BOLT;SEMS
43	4245797	[3]	PLUG
46	3053559	[1]	NAME-PLATE
47	M492564	[2]	SCREW;DRIVE

Advantage:
1. The Oil Seal Structure Is Simple And Easy To Manufacture. Simple Oil Seals Can Be Molded At One Time, Even The Most CompliC.A.Ted Oil Seals Are Manufactured Using Oil Seals
Not CompliC.A.Ted. The Metal Frame Oil Seal Also Only Needs To Go Through The Processes Of Stamping, Gluing, Inlaying, And Molding To Form The Required Oil Seal With Metal And Rubber.
2. The Oil Seal Is Light In Weight And Less Consumable. Each Oil Seal Is a Combination Of Thin-Walled Metal Parts And Rubber Parts, And Its Material Consumption Is Very Small, So The Weight Of Each Oil Seal Is Very Light.
3. The Installation Position Of The Oil Seal Is Small, The Axial Size Is Small, It Is Easy To Process, And The Machine Is Compact.
4. The Oil Seal Has Good Sealing Performance And Long Service Life. It Has Certain Adaptability To The Vibration Of The Machine And The Eccentricity Of The Spindle.
5. The Oil Seal Is Easy To Disassemble And Inspection Is Convenient.
6. The Oil Seal Is Cheap.

Cause Of The Problem:
The Main Factors Causing Oil Seal Leakage
Loose Oil Seal Is The Main Cause Of Oil Leakage.When The Shaft Is Worn And Grooves Are Formed, Even If The Oil Seal Is Replaced, It Can Not Be Sealed, Because The Contact Pressure Between The Oil Seal Lip And The Shaft Drops, Resulting In Too Small Interference Between The Diameter Of The Oil Seal Lip And The Shaft Diameter After Installation.
1. The Oil Seal Manufacturing Quality Is Poor;
2. Poor Shaft Or Bearing Quality;
3. Improper Use And Maintenance;
4. Improper Installation;
5. Improper Storage, Caused By Environmental Pollution
