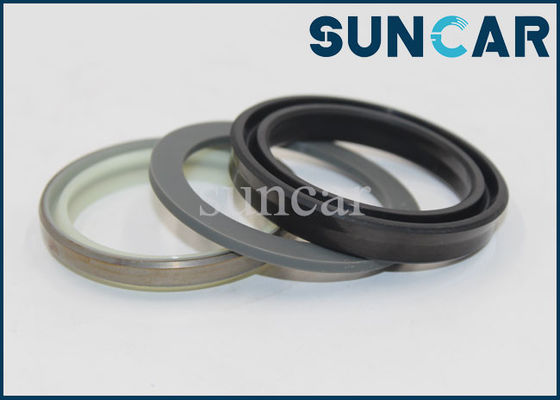

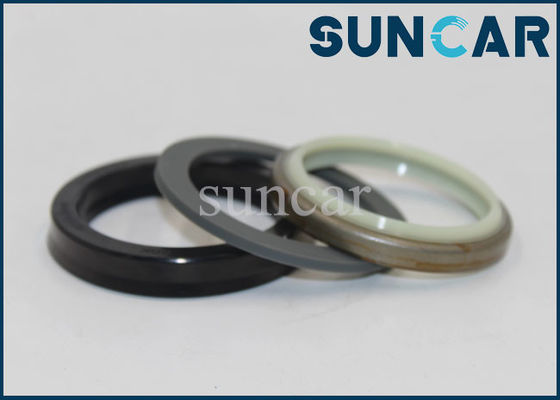

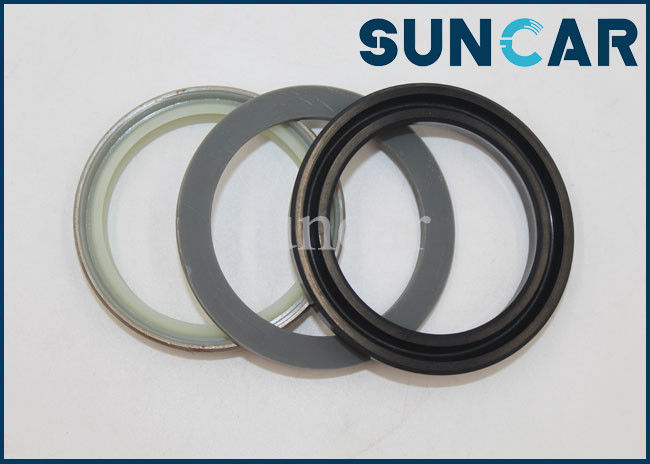

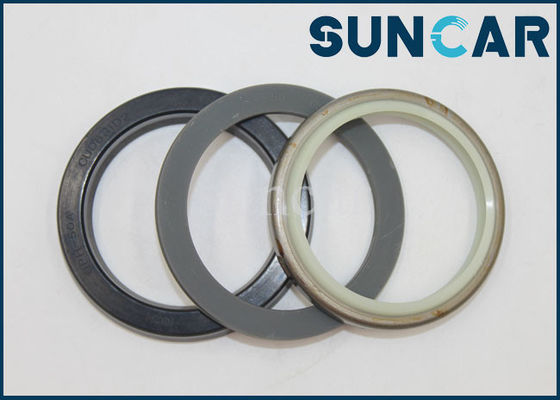

Track Adjuster Hydraulic Seal Repair Kit 81N1-15012 Fits R80-7A
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x부품번호 | 81N1-15012 | 특징 | 유가 & 고압 & 고온 레지스턴트 |
---|---|---|---|
상태 | 새로운 100% | OEM와 ODM | 어서 오십시오 |
적용 가능한 산업 | 건설 작업, 기계 정비소, 다른 소매점 | 재료 | 충돌, PU, NBR, 강철 |
하이 라이트 | 81N1-15012 Repair Kit,81N1-15012 Hydraulic Seal,R80-7A 81N1-15012 |
Hyundai R80-7A Excavator Cylinder 81N1-15012 Track Adjuster Hydraulic Repair Seal Kit
Product Name | Hyundai R80-7A Excavator Cylinder 81N1-15012 Track Adjuster Hydraulic Repair Seal Kit |
Part No. | 81N1-15012 |
Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
Hardness | 70-90 Shore A |
Color | Black, White or other |
Size | Standard Size |
MOQ | We accept trial order |
Packing | PP bag inside, carton box outside( According to your requirements) |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment | Western Union, L/C, T/T, , D/A, D/P etc. |
Port | HUAGNPU,China (Mainland) |
Express | Fedex,TNT,UPS,DHL |
Customized | OEM & ODM are welcomed |
AppliC.A.Tion | Excavator Inner Systerm |
Condition | 100% New |
Related Parts:
Pos. | Part No | Qty | Parts name | Comments |
*. | 81N1-15011 | [2] | ADJUST COMPONENT | STD |
*. | 81N1-15012 | [2] | ADJUST COMPONENT | STD |
*. | 81N1-15051 | [2] | ADJUST COMPONENT | RUBBER TRACK |
*. | 81N1-15052 | [2] | ADJUST COMPONENT | RUBBER TRACK |
1 | 81N1-13010 | [1] | IDLER ASSY | STD |
1 | 81N1-13050 | [1] | IDLER ASSY | RUBBER TRACK |
1 | 81N1-13051 | [1] | IDLER ASSY | RUBBER TRACK |
1-1. | 81N1-13100 | [1] | SHELL-IDLER | STD |
1-1. | 81N1-13500 | [1] | SHELL-IDLER | RUBBER TRACK |
1-1. | 81N1-13501 | [1] | SHELL-IDLER | RUBBER TRACK |
1-2. | 81N1-13110 | [1] | SHAFT | |
1-3. | 81E6-2206 | [2] | SEAL ASSY | |
1-4. | 81N1-13120 | [2] | BUSHING | |
1-5. | 81N1-13130 | [2] | BRACKET | |
1-6. | 81N1-13170 | [2] | O-RING | |
1-7. | 81N1-13180 | [2] | PIN-SPRING | |
1-8. | 82E5-2402 | [1] | PLUG | |
2 | 81N1-14011 | [1] | T/CYLINDER ASSY | STD |
2 | 81N1-14051 | [1] | T/CYLINDER ASSY | RUBBER TRACK |
2 | 81N1-14052 | [1] | T/CYLINDER ASSY | RUBBER TRACK |
2-1. | 81N1-14300 | [1] | BODY ASSY | STD |
2-1. | 81N1-14300 | [1] | BODY ASSY | RUBBER TRACK |
2-1. | 81N1-14301 | [1] | BODY ASSY | RUBBER TRACK |
2-1-1. | 81N1-14100 | [1] | BODY | W/O PIN-HOLE |
2-1-1. | 81N1-14101 | [1] | BODY | W/O PIN-HOLE |
2-1-2. | 81N1-14110 | [1] | BAR-TIE | W/O PIN-HOLE |
2-1-2. | 81N1-14115 | [1] | BAR-TIE | RUBBER TRACK |
2-1-3. | 81E6-20190 | [1] | PIN-SPRING | |
2-2. | 81N1-14120 | [1] | SRPING | |
2-2. | 81N1-14121 | [1] | SRPING | |
2-3. | 81N1-14131 | [1] | BRACKET | |
2-4. | 81N1-14140 | [1] | NUT-LOCK | |
2-5. | 81N1-14150 | [1] | PLATE-LOCK | |
2-6. | S017-080252 | [2] | BOLT-HEX | |
2-7. | S411-080002 | [2] | WASHER-SPRING | |
2-8. | 81N1-14180 | [1] | SEAL-ROD | |
2-9. | 81N1-14190 | [1] | RING-BACK UP | |
2-10. | 81N1-14200 | [1] | SEAL-DUST | |
2-11. | 81N1-14210 | [1] | ROD | |
2-12. | E181-2013 | [1] | VALVE-GREASE | |
2-12. | 81N6-14240 | [1] | VALVE-GREASE | |
2-13. | 81N1-14220 | [1] | SPACER | STD |
2-13. | 81N1-14520 | [1] | SPACER | RUBBER TRACK |
2-13. | 81N1-14521 | [1] | SPACER | RUBBER TRACK |
3 | S017-16040D | [2] | BOLT-HEX | |
4 | S411-160006 | [2] | WASHER-SPRING |
Storage Precautions:
When storing seals, please pay attention to the following items:
1. Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
2. Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
3. When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
4. Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
5. Do not place the seal near the motor or where ozone is generated.
6. Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.
7. The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
Welcome OEM/ODM order. Please click "ask a question", or call us if you have a parts need that you do not see listed here.
